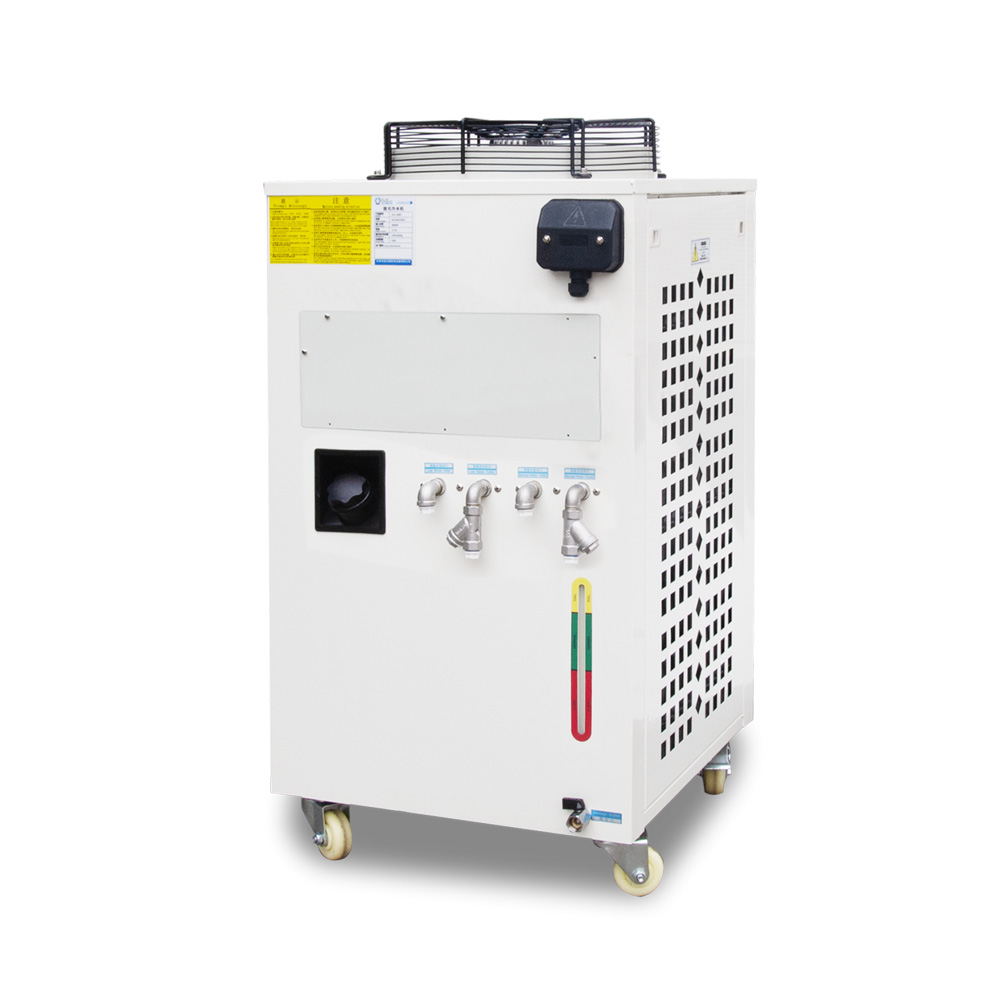

JLFL-6000 Fiber laser chiller

JLFL-6000 Fiber laser chiller

1. Using environment-friendly refrigerant, the refrigeration performance is stable;
2.Temperature control precision control range is small (±1°C);
3. in the power-on standby state, the antifreeze function can be started automatically;
4. lt has dual independent temperature control mode to meet the cooling temperature requirements of laser and laser cutting lenses;
5. With water flow alarm, ultra-high temperature and ultra-low temperature and sensor fault alarm functions;
6. lt has the function of compressor overcurrent and overload protection to extend the service life of the compressor.
Product parameters
ModelJLFL-6000
Operating VoltageAC 3PH 380V
Operating Current2.7-14A
Operating Frequency50HZ
Rated Power5050W
RefrigerantR410a
Water Pump Voltage and Power220v/750W
Maximum Lift47M
Maximum Flow Rate4m³/h
Water Inlet/Outlet PortsRp1/2"*Rp3/4"
Maximum Cooling Tank Capacity45L
Chiller Dimensions (L×W×H)750*570*1020mm
Packaging Dimensions (L×W×H)780*590*1160mm
Net Weight100KG
Gross Weight110KG
