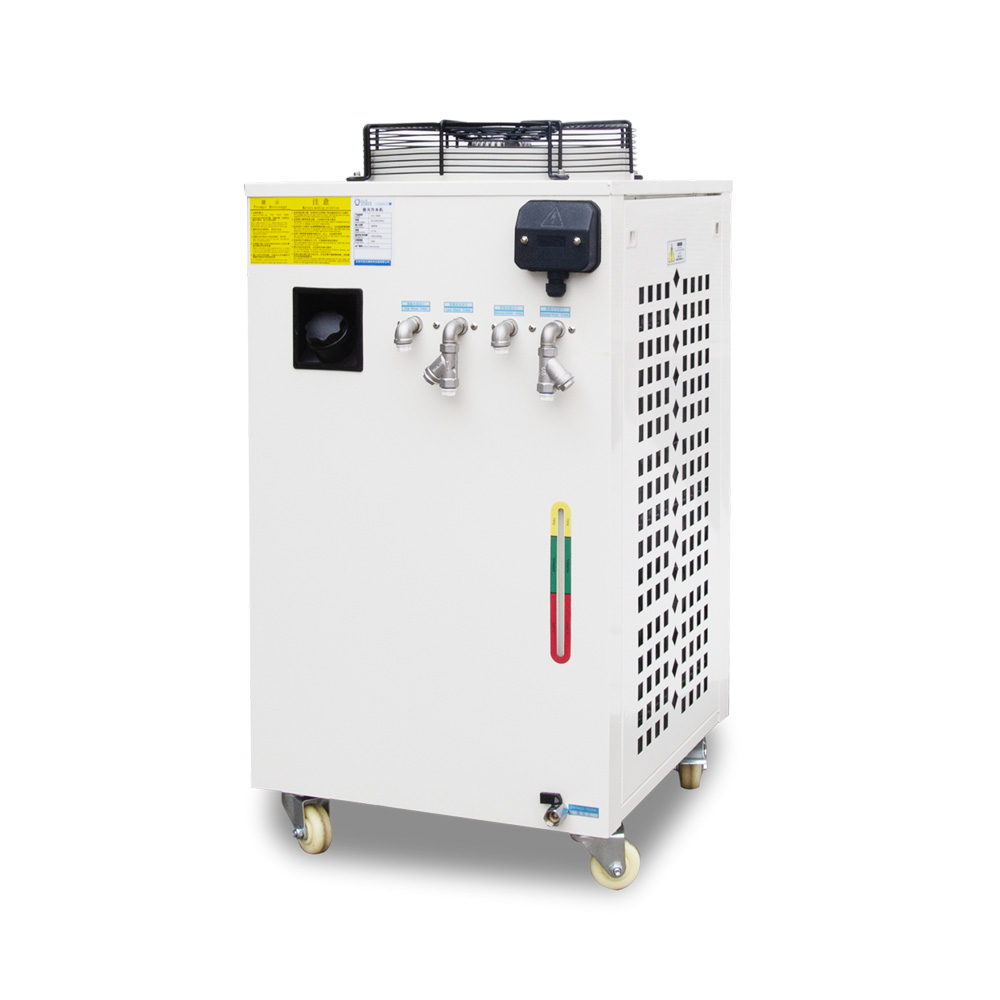

JLFL-3000 Fiber laser chiller

JLFL-3000 Fiber laser chiller

1. Using environment-friendly refrigerant, the refrigeration performance is stable;
2.Temperature control precision control range is small (±1°C);
3. In the power-on standby state, the antifreeze function can be started automatically;
4. it has dual independent temperature control mode to meet the cooling temperature requirements of laser and laser cutting lenses;
5. With water flow alarm, ultra-high temperature and ultra-low temperature and sensor fault alarm functions;
6. it has the function of compressor overcurrent and overload protection to extend the service life of the compressor.
Product parameters
ModelJLFL-3000BJLFL-3000JLFL-3000C
Operating VoltageAC 1PH 220VAC 1PH 220VAC 1PH 220V
Operating Current1.5-12.8A1.5-13.2A1.8-12.2A
Operating Frequency50HZ60HZ50HZ
Rated Power2.85KW2.91KW2.75KW
RefrigerantR410a
Water Pump Voltage and Power220v/370W
Maximum Lift38M
Maximum Flow Rate88L/min
Water Inlet/Outlet PortsRp1/2"*Rp1/2"
Maximum Cooling Tank Capacity18L
Chiller Dimensions (L×W×H)640*500*880mm
Packaging Dimensions (L×W×H)59*58*1010mm
Net Weight72KG65KG
Gross Weight80KG77KG
