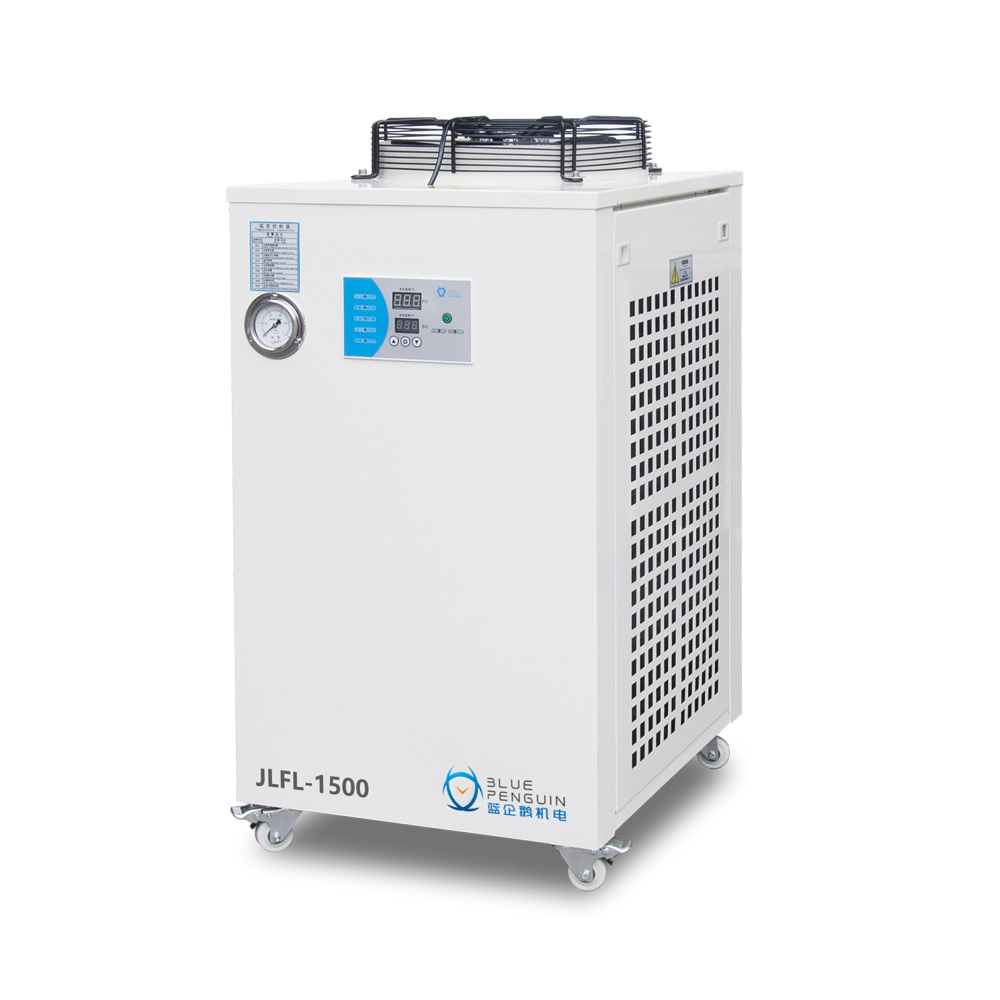

JLFL-1500 Fiber laser chiller

JLFL-1500 Fiber laser chiller

1. Using environment-friendly refrigerant, the refrigeration performance is stable;
2.Temperature control precision control range is small (±1°C);
3. In the power-on standby state, the antifreeze function can be started automatically;
4. lt has dual independent temperature control mode to meet the cooling temperature requirements of laser and laser cutting lenses;
5. With water flow alarm, ultra-high temperature and ultra-low temperature and sensor fault alarm functions;
6. it has the function of compressor overcurrent and overload protection to extend the service life of the compressor.

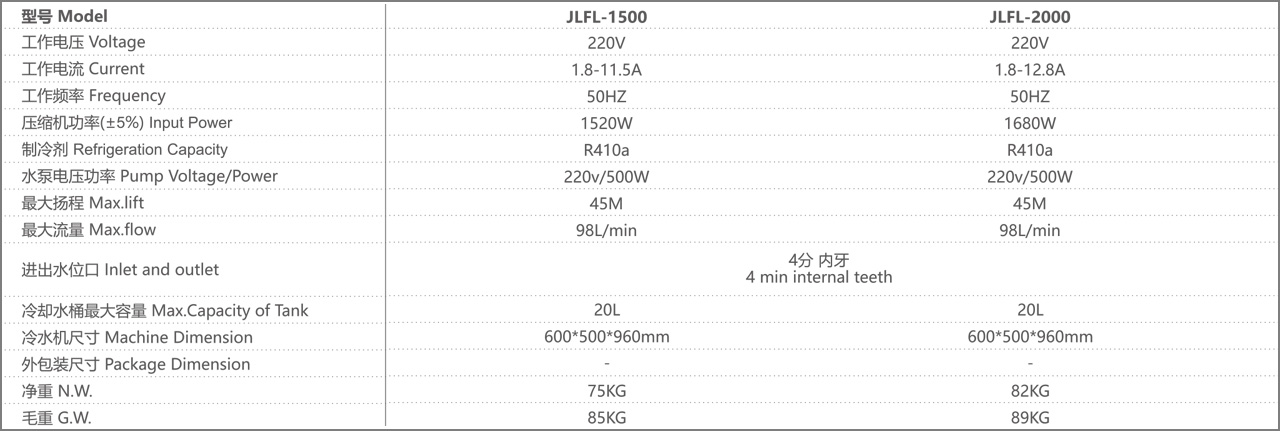

Product parameters
ModelJLFL-1500AJLFL-1500BJLFL-1500CJLFL-1500
Operating VoltageAC 1PH 220VAC 1PH 220VAC 1PH 220VAC 1PH 220V
Operating Current1.8-12A1.8-10A1.5-9A1.8-11A
Operating Frequency50HZ50HZ50HZ60HZ
Rated Power2.65KW2.35KW1.9KW2.65KW
RefrigerantR410a
Water Pump Voltage and Power220v/300W220v/360W220v/360W220v/360W
Maximum Lift30M70M
Maximum Flow Rate80L/min40L/min
Water Inlet/Outlet PortsRp1/2"*Rp1/2"
Maximum Cooling Tank Capacity18L18L
Chiller Dimensions (L×W×H)570*465*820mm570*465*820mm
Packaging Dimensions (L×W×H)610*510*960mm610*510*960mm
Net Weight65KG46KG42KG46KG
Gross Weight77KG52KG48KG52KG
