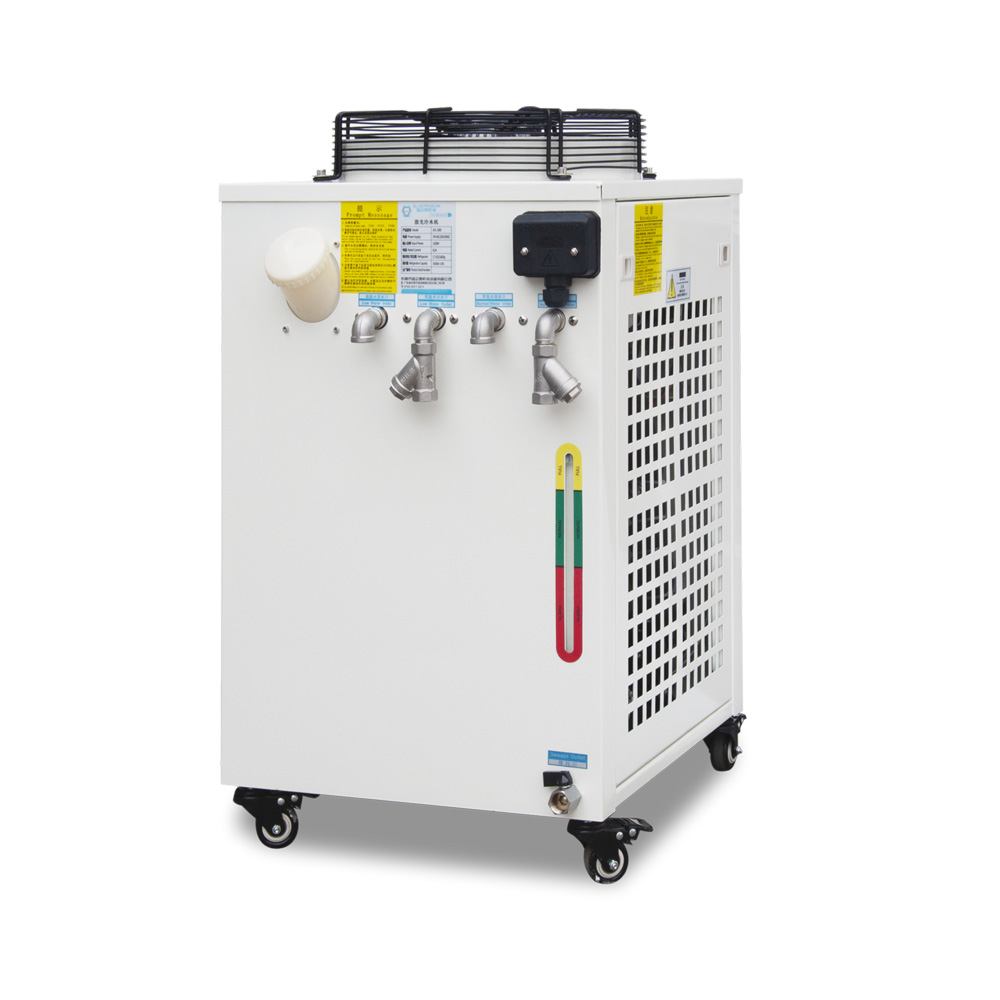

JLFL-1000 Fiber laser chiller

JLFL-1000 Fiber laser chiller

1. Using environment-friendly refrigerant, the refrigeration performance is stable;
2.Temperature control precision control range is small (±1°C);
3. In the power-on standby state, the antifreeze function can be started automatically;
4. lt has dual independent temperature control mode to meet the cooling temperature requirements of laser and laser cutting lenses;
5. With water flow alarm, ultra-high temperature and ultra-low temperature and sensor fault alarm functions;
6. lt has the function of compressor overcurrent and overload protection to extend the service life of the compressor.

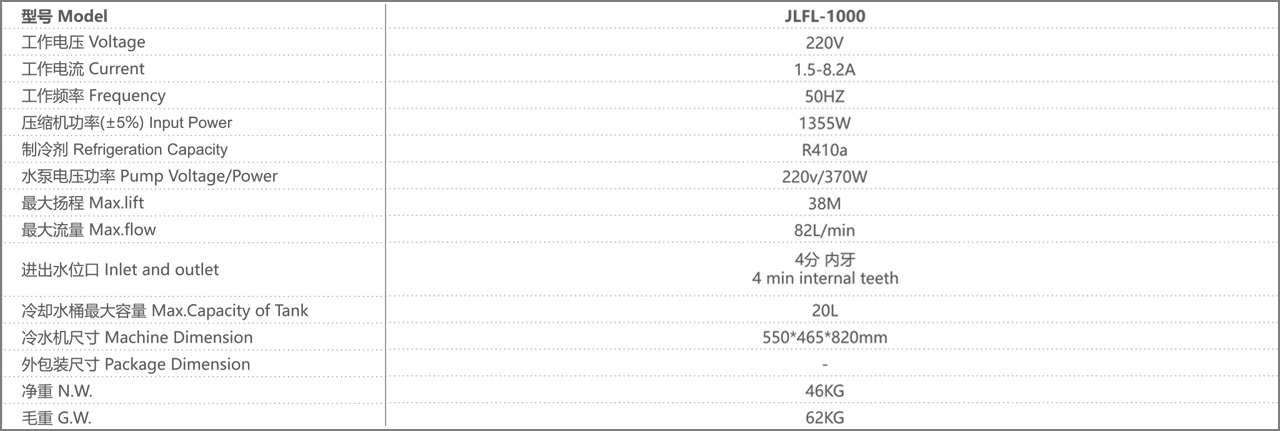

Product parameters
ModelJLFL-1000JLFL-1000
Operating VoltageAC 1PH 220VAC 1PH 220V
Operating Current1.5-8.2A1.5-8.6A
Operating Frequency50HZ60HZ
Rated Power1.8KW2.0KW
RefrigerantR410a
Water Pump Voltage and Power220v/360W
Maximum Lift70M
Maximum Flow Rate40L/min
Water Inlet/Outlet PortsRp1/2"*Rp1/2"
Maximum Cooling Tank Capacity18L
Chiller Dimensions (L×W×H)570*465*820mm
Packaging Dimensions (L×W×H)610*510*960mm
Net Weight42KG
Gross Weight48KG
