Location: Home > Products > Ultraviolet laser chiller

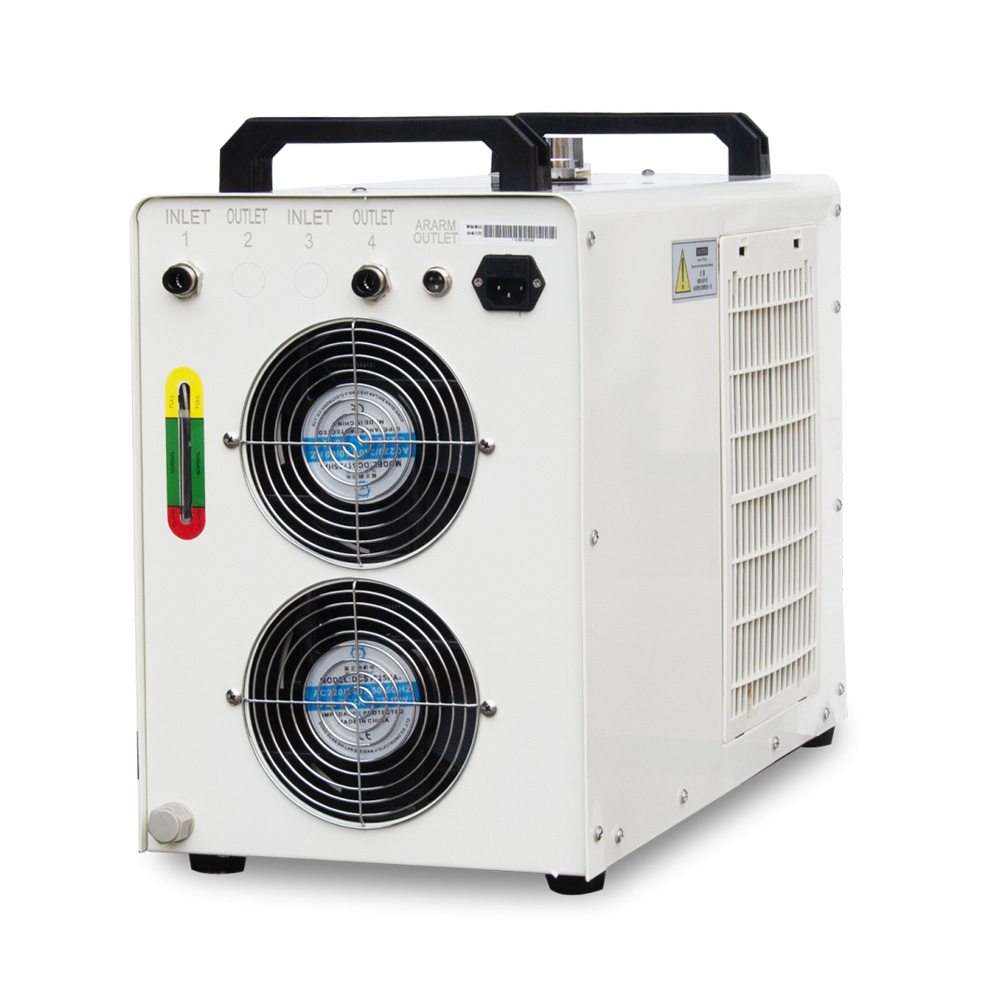

JLUL-3 Ultraviolet laser chiller

JLUL-3 Ultraviolet laser chiller

1. The refrigeration capacity is 1100w, and the environment-friendly refrigerant can be used, and the refrigeration performance is stable;
2. Dual nixie tube display, the actual temperature and the set temperature are clear at a glance;
3. Temperature control precision control range is small (± 0.2 °C);
4. lt has heating function to meet the rapid and normal use of equipment in cold environment;
5. With water flow alarm, ultra-high temperature and ultra-low temperature and sensor fault alarm functions;
6. it has the function of compressor overcurrent and overload protection to extend the service life of the compressor.

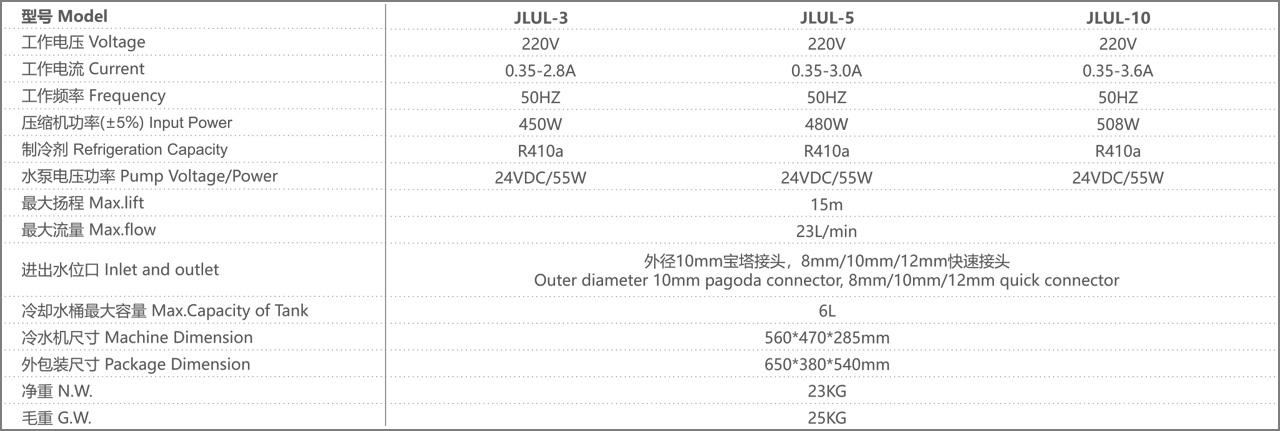

Product parameters
ModelJLUL-3JLUL-5JLUL-10JLUL-15
Operating VoltageAC 1PH 220VAC 1PH 220VAC 1PH 220VAC 1PH 220V
Operating Current0.35-3.80.35-4.5A0.35-5A0.35-6A
Operating Frequency50HZ50HZ50HZ50HZ
Rated Power0.82KW0.9KW1.0KW1.1KW
Nominal Cooling Capacity357 Kcar/h595 Kcar/h1020 Kcar/h1200Kcar/h
0.42KW0.7KW1.2KW1.5KW
1420 Btu/h2380 Btu/h4080Btu/h5100Btu/h
Auxiliary Heating Power300W300W300W300W
Water Pump Voltage and Power24VDC/55W24VDC/55W24VDC/55W24VDC/55W
Maximum Lift (Head)15m
Maximum Flow Rate23L/min
Water Inlet/Outlet Connections10mm quick connector
Maximum Cooling Tank Capacity6L
Chiller Dimensions(L*W*H)560*285*460mm
Packaging Dimensions(L*W*H)650*380*540mm
Net Weight23KG24KG
Gross Weight25KG26KG
